Premium 90gsm (24lb) Natural Translucent Tracing Paper Rolls

Type :
High-Resolution Natural Translucent Tracing Paper (90gsm / 24lb)
Made By :
100 percent Virgin Wood Pulp
Core Size :
2 inch (50.8mm) Standard | 3 inch (76.2mm) Optional
Color :
Natural Translucent / Semi-Opaque
Width :
US: 18/24/36/42/44 inch | Metric: 420-1118mm | Custom widths available
Length :
US: 150/300 ft | Metric: 45.7/50/91.4m | Custom lengths available
Quantity of Rolls :

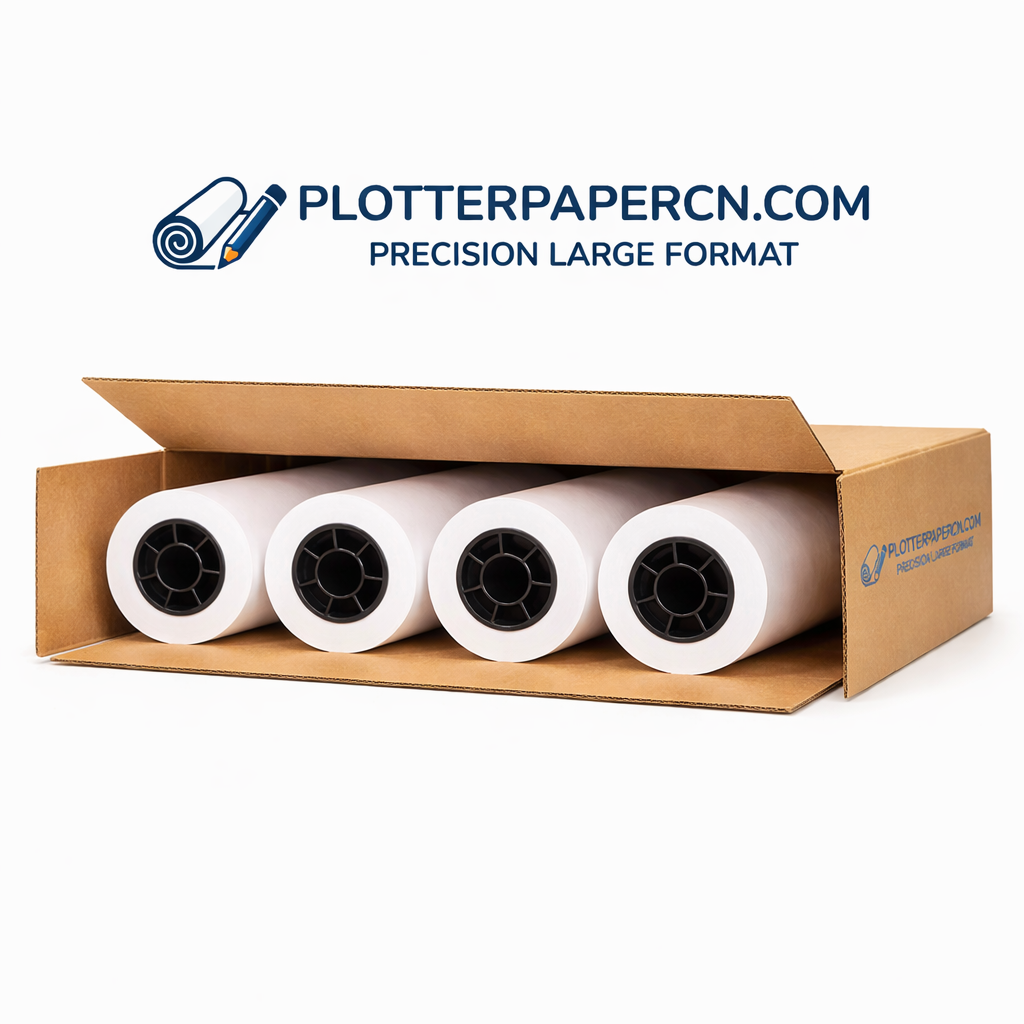

4 Rolls/Carton | Custom roll counts and private label cartons available
MOQ :
200 Rolls
China Made
FSC Certified
High Quality
Key Features
Versatile Uses
Technical Info
Packaging Instructions

Advanced Design Grade:

At a robust 90gsm (approx 24lb), this mid-weight translucent paper provides a noticeable upgrade in stiffness and ink holdout, specifically designed for high-end graphic design studios and demanding engineering blueprints.

Superior Tear Resistance:

Engineered with an exceptional minimum tear strength of 320 mN, drastically reducing the risk of tearing during heavy ink saturation or vigorous erasing.

Optimal Clarity:

Maintains a minimum 67 percent transparency rate, ensuring underlying grids and previous drafts remain clearly visible while providing a thicker, more premium feel.

Eco-Friendly and Biodegradable:

Responsibly manufactured from approx 93 percent natural cellulose pulp and water. Fully recyclable, non-toxic, and 100 percent biodegradable to support sustainable global business practices.

Premium Smoothness:

Features an upgraded 13 S smoothness rating, delivering flawless, bleed-free lines for both manual ink pens and precision wide-format plotting.

High-End Architectural Renderings:

Ideal for final project proposals and presentations that require a professional, durable, and semi-transparent aesthetic.

Heavy-Duty CAD and Engineering:

The preferred choice for complex topographical maps and master blueprints where extreme durability and high ink saturation are paramount.

Commercial Graphic Arts:

Used extensively by design agencies for premium layout proofs, commercial color drafts, and specialty artistic prints.

Basis Weight: 90 gsm (+/- 5 percent variance)

Caliper (Thickness): 80 microns (+10 um variance) / approx 3.1 mil

Transparency: Minimum 67 percent

Tear Strength: Minimum 320 mN

Smoothness: 13 S

Moisture Content: 7.0 percent (+/- 1.5 percent)

Composition: Approx 93 percent Cellulose Pulp, Approx 6.8 percent Water

Environmental Profile: 100 percent Recyclable and Biodegradable

Global Export and Online Sales Ready:

Engineered to survive trans-oceanic freight and rough last-mile courier networks.

Suspended Edge Protection:

Heavy-duty plastic end caps lock the core in place, guaranteeing zero edge-crushing.

Climate-Sealed Inner Bag:

Every roll is sealed in a moisture-proof poly bag to prevent the delicate matte coating from degrading.

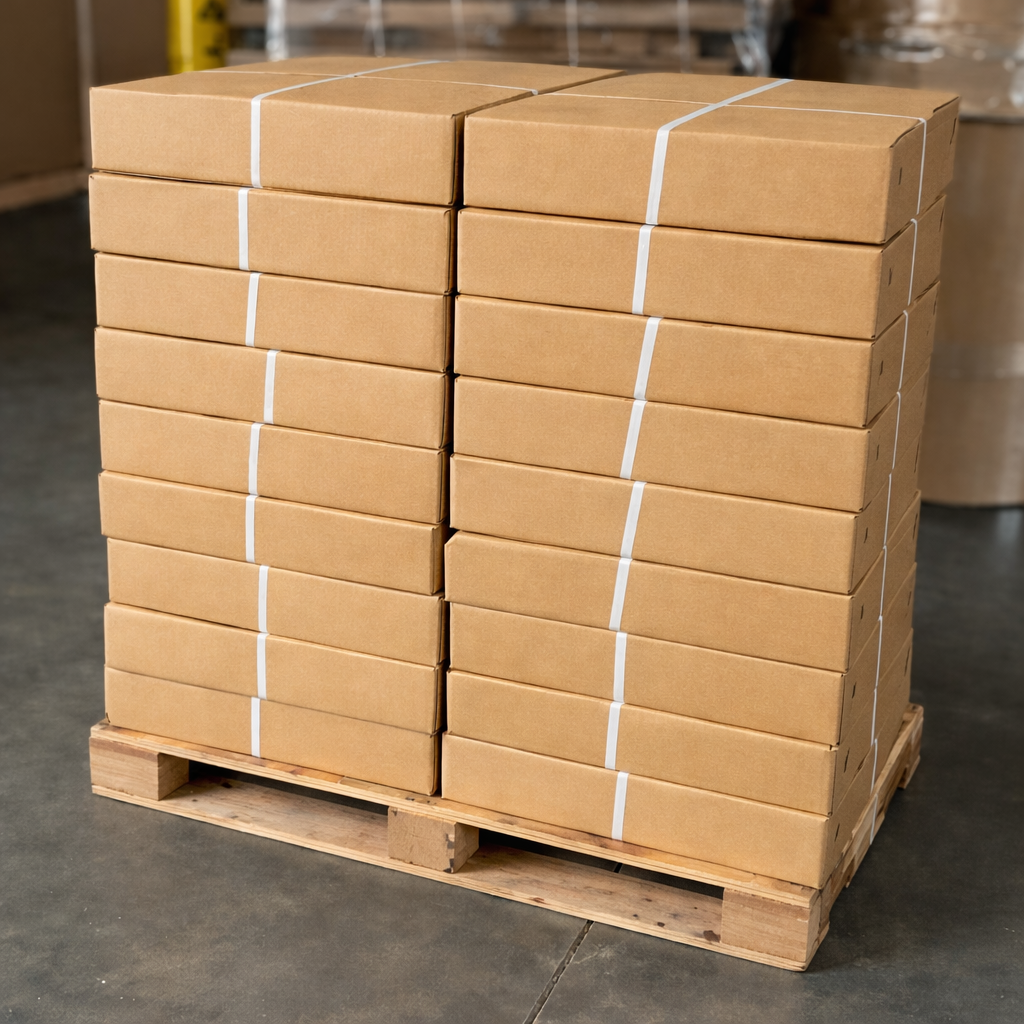

Drop-Test Certified Outer Cartons:

Housed in premium, double-walled corrugated boxes designed to prevent bursting.

Private Label and Dropship Support:

Blank cartons available for direct-to-consumer shipping, with full custom barcode labeling support.
